Best Oscillating Spindle Sander Reviews: The Top Models To Buy
Contents

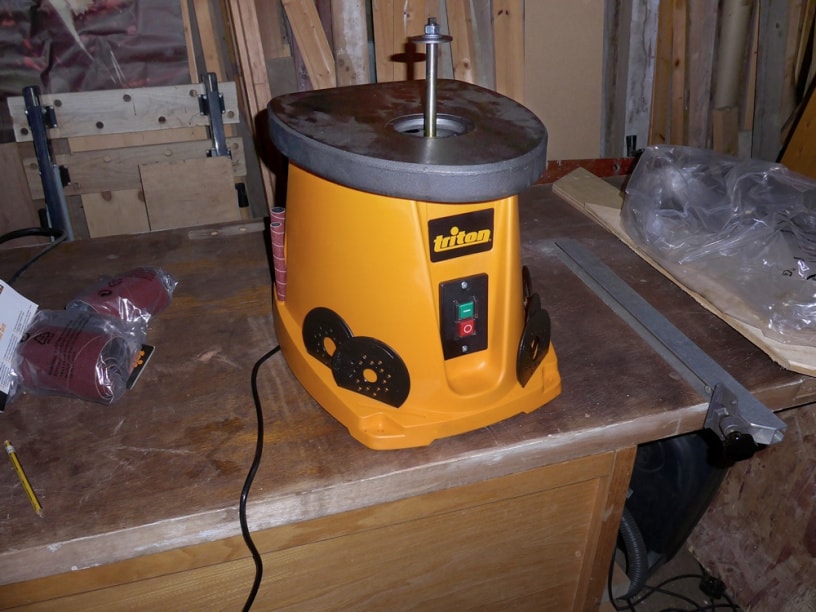

A spindle sander smooths inside curves, cutouts and edges that a flat sander cannot reach. The drum spins and moves up and down at the same time. That spreads wear across the sleeve and helps prevent burn marks and grooves.
Below are four picks, from benchtop machines to a handheld model.
Best Spindle Sander Reviews
These spindle sanders are worth the money:
- WEN 6510T Oscillating Spindle Sander
- Shop Fox Single Phase Oscillating Spindle Sander
- Jet Benchtop Oscillating Spindle Sander
- EJWOX Portable Handheld Oscillating Spindle Sander
Learn more about the features integrated in these sanders:

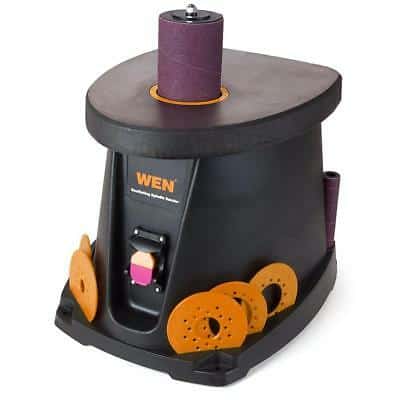

1. WEN 6510T Oscillating Spindle Sander
This benchtop sander takes the hand work out of sanding curved edges. Incorporated with ½ HP and 3.5 amps of motor power, this tool can oscillate 58 times and rotate 2000 times in just one minute. Each oscillation has a 5/8 inch of stroke. The motor runs fairly quietly.
The work table has a size of 15 x 11.5 inches, which should be large enough to accommodate a variety of applications. It is made from cast iron, which is flat and durable. The base has pre-drilled holes for mounting, though its weight keeps it stable for most work.
Pros:
It runs fairly quietly.
The cast iron table is durable and resists dings. Cast iron can rust, so wipe it with paste wax now and then.
Included in your purchase are 6 different sizes of sanding sleeves. You are ready to use this straight out of the box. You can keep these sanding sleeves on hand, thanks to the disc slots and storage at the bottom of the tool. This makes it easier to store sanding drums.
Keep your work area clean, thanks to its 1.5-inch dust port. Attach a dust collection system to get rid of sawdust.
It is heavy enough to stay put for most work.
It has a good mid-range price for its features.
The dust port works well when connected to a shop vac.
Cons:
The spin direction for this is different. It spins counterclockwise, which can put off some people who are used to a clockwise sander.

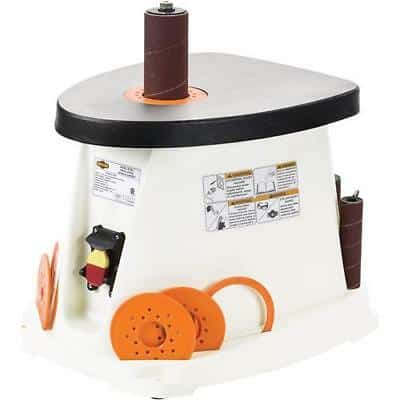

2. Shop Fox Single Phase Oscillating Spindle Sander
This 30-pound spindle sander has a ½ horsepower motor, like the WEN, and a similar 58 oscillations per minute and table size. The work table is also made from durable cast iron material. Each stroke runs a 5/8-inch length. It also has an RPM speed of 2000 and a dust port size of 1.5 inch.
It is handy and compact but offers a good amount of storage pocket for your sanding sleeves, spindles and inserts. Additionally, its locking power switch is what sets it apart from the rest. You can lock it and remove the key so that no unauthorized person will be able to use it.
Pros:
This unit is slightly more affordable than the previous one. If you are looking for roughly the same features but a cheaper alternative, this can be a good option.
The work space size is good. It is still a substantial size that will allow you to work on different sizes of material.
It works on a variety of materials, including dense hardwoods.
The dust port is easy to hook up.
It has a solid, stable base.
Cons:
There were those who said they did not like how loud this spindle sander is.

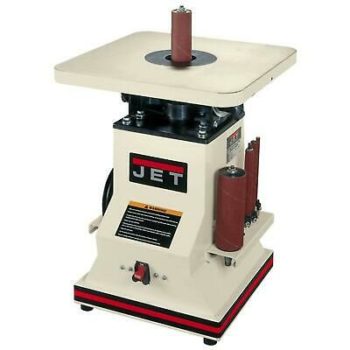

3. Jet Benchtop Oscillating Spindle Sander
Choose this spindle sander for heavier, professional use. It has a 3-amp motor and a slower 1,725 RPM spindle speed, which is less likely to burn wood. It also has a bigger work table. Its 14.5 x 14.5 inch of work table space allows you to work with bigger materials.
It uses precision ball bearings and a sealed gearbox, which protects the gears from dust.
Pros:
It has a longer 1-inch oscillating stroke than the previous sanders, which spreads wear over more of the sleeve.
You can tilt the table to 45 degrees, giving you more flexibility when working on those wood projects. This feature allows you to reach difficult areas for more effective sanding. It also accommodates bevel sanding.
It has a removable safety switch. This can prevent the tool from accidentally starting when not in use.
Aside from its sturdy build, it also has a good base. It doesn’t move around easily, thanks to its non-skid rubber feet.
It has a bigger dust port for better dust extraction.
This product is backed by a 5-year warranty.
The threaded ends of the spindle are a nice feature as it makes way for faster changes.
The built-in storage rack helps you organize your table inserts and spindles. You can reach for them easily and do spindle replacement as needed.
Its heavy-duty gears and worm drive handle heavier sanding loads.
Cons:
It is double the price of the previous sanders. It is also heavier.

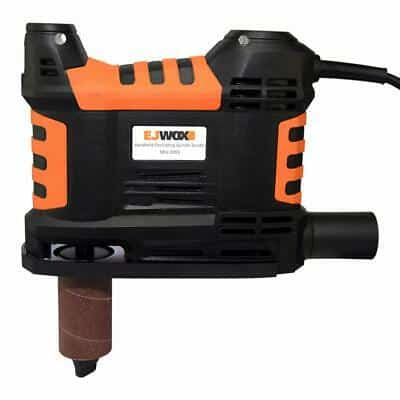

4. EJWOX Portable Handheld Oscillating Spindle Sander
Take the tool to the actual material you are sanding and not the other way around. This tool can accommodate that need. It is a handheld spindle sander that you can use to smooth out those edges and get rid of bumps. It has a 5-amp motor. It weighs only 5 lbs., making this a fitting choice for sanding on the go.
It even has a variable speed setting. Its RPM can be set from 1800 to 3200. It has an oscillating function from 50 to 90 OPM. It is easy to handle as it has rubberized grips that can make maneuvering it all over your work area easier. Vibrations are also reduced to prevent hand fatigue.
Pros:
Because it is handheld, you can sand curves on large or installed pieces that will not fit on a benchtop sander.
It might be handheld and compact, but it is still powerful. It has a higher RPM than the previous models and also has a good OPM, offering you more flexibility. It is also the only sander here with variable speed. If you are working on more delicate materials or part, you can set it to a lower setting.
Need a bench-mounted spindle sander? This can accommodate your needs as well. It comes with inversion clamps and a bench mat that can be used to convert this into a bench-mounted type of spindle sander.
It handles hardwood and works on arcs, curves and edges.
An adjustable edge guide helps you remove material evenly.
Your purchase comes complete with different sizes of sanding sleeves. You get ½-inch, ¾-inch, 1-inch and 1-1/2-inch diameter of sanding sleeve, so you can get started on your various sanding projects.
Changing the sanding sleeves and sanding drums is easy.
It comes with a dust extraction port adaptor. You can hook it up to a shop vac to keep your work space clean.
The on and off switch and the speed control dial are separated. This is a good design feature as it prevents you from accidentally changing to a higher speed setting when trying to turn it off.
It is a more affordable spindle sander, perfect for those who are on a tight budget.
Cons:
The sleeve tends to require repositioning from time to time.
The Verdict: Which Spindle Sander is Right for You?
Can Last for a Long Time: WEN 6510T Oscillating Spindle Sander. We think this is one of the most durable sanders in its price range, with a cast iron table that resists dings. It has a lot of power and it is easy to use. You also get ample work space, so for those who are looking for a considerably-sized spindle sander that does what it is supposed to do, this is a good choice.
Has a Locking Mechanism: Shop Fox Single Phase Oscillating Spindle Sander. Get this if you are looking for a less expensive alternative to the previous product. If you don’t like other people using your tool, this feature can come handy. It removes material well, though it is a bit noisy.
For Professional Woodworkers: Jet Benchtop Oscillating Spindle Sander. Invest in this high quality and heavy duty sander that can accommodate a variety of applications. It can handle more serious sanding work. It is more expensive but if you are more serious about your woodworking projects, you definitely should consider getting this sander.
Most Versatile: EJWOX Portable Handheld Oscillating Spindle Sander. It is the least expensive choice here and the only portable one. It is a handheld tool that you can use to sand heavier materials that won’t fit on your work table. It can also be converted into a tabletop spindle sander. It is also the only one here with variable speed.
Conclusion
For most shops, the WEN 6510T is the best value, and the Jet suits heavier professional use. Check out our homepage for more tool guides.
Safety Tips
Feed the work against the spindle's rotation and keep your fingertips well away from the drum. Use the table insert that fits closest around the spindle you are using, so small parts cannot drop into the gap.
Unplug the sander before changing sleeves or spindles, as OSHA advises when changing accessories. Connect a dust collector or shop vac and wear a dust mask. OSHA notes that breathing wood dust can cause allergic and other respiratory symptoms.
Sources
- Wood Dust: Overview, Occupational Safety and Health Administration
- Hand and Power Tools (OSHA 3080), Occupational Safety and Health Administration
